Java Benchmarks

System Environment

• Operation System：4.9.151-015.x86_64
• CPU：Intel(R) Xeon(R) Platinum 8163 CPU @ 2.50GHz
• Byte Order：Little Endian
• L1d cache： 32K
• L1i cache：32K
• L2 cache： 1024K
• L3 cache： 33792K

JMH params

Don't skip warm up, otherwise the results aren't accurate.

 -f 1 -wi 3 -i 3 -t 1 -w 2s -r 2s -rf cs

Benchmark Data

Struct

Struct is a class with 100 primitive fields:

public class Struct {
  public int f1;
  public long f2;
  public float f3;
  public double f4;
  // ...
  public double f99;
}

Struct2

Struct2 is a class with 100 boxed fields:

public class Struct {
  public Integer f1;
  public Long f2;
  public Float f3;
  public Double f4;
  // ...
  public Double f99;
}

MediaContent

MEDIA_CONTENT is a class from jvm-serializers.

Sample

SAMPLE is a class from kryo benchmark

Benchmark Plots

Serialize to heap buffer

Serialize data java byte array.

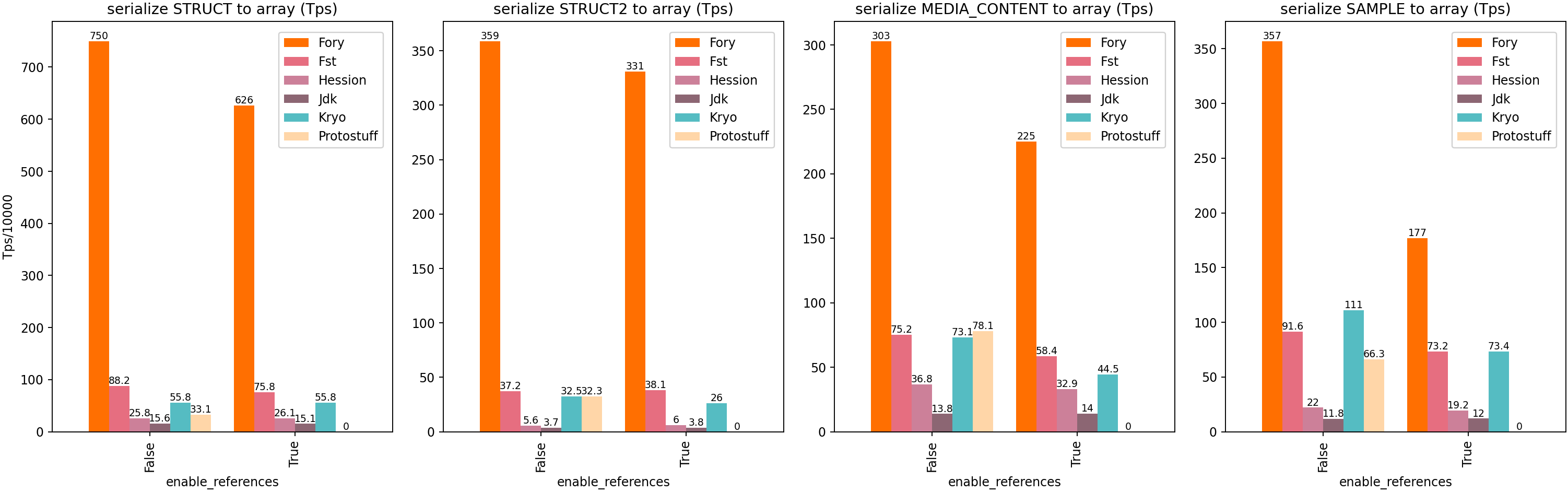

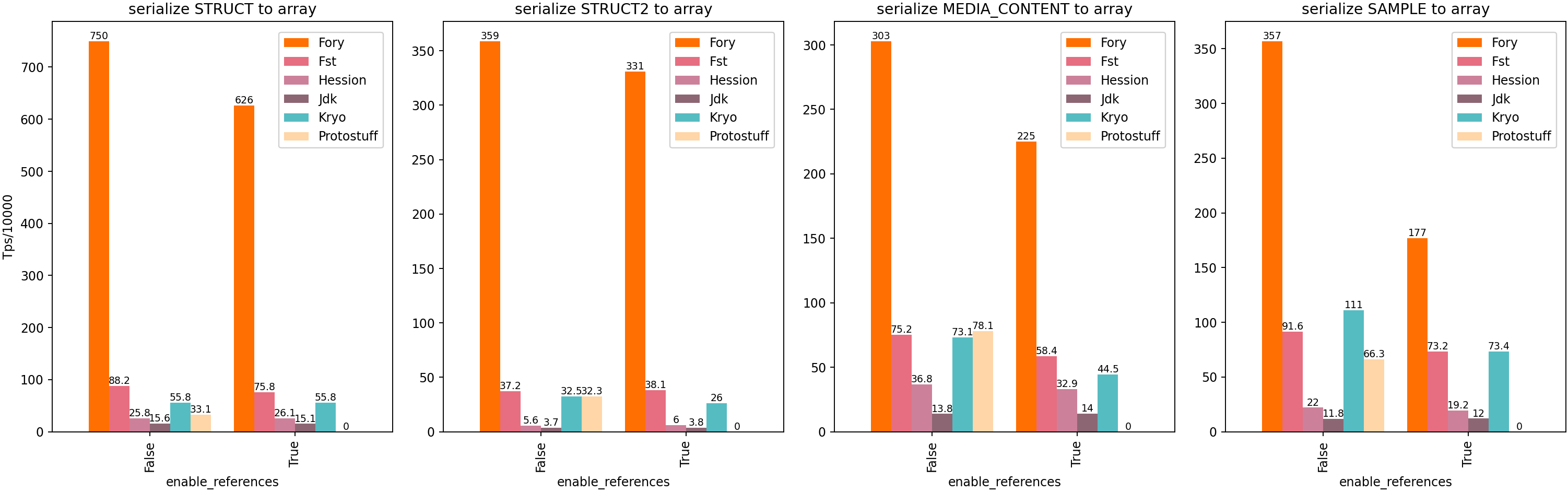

Java schema consistent serialization

The deserialization peer must have same class definition with the serialization peer. No class forward/backward compatibility are supported in this mode.

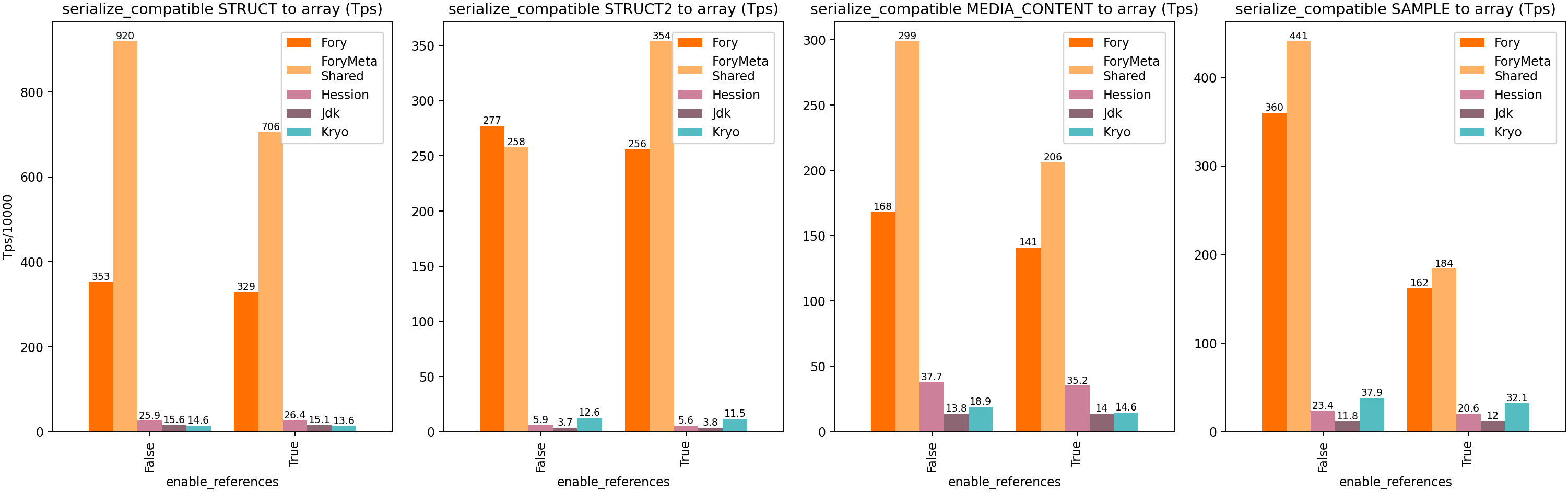

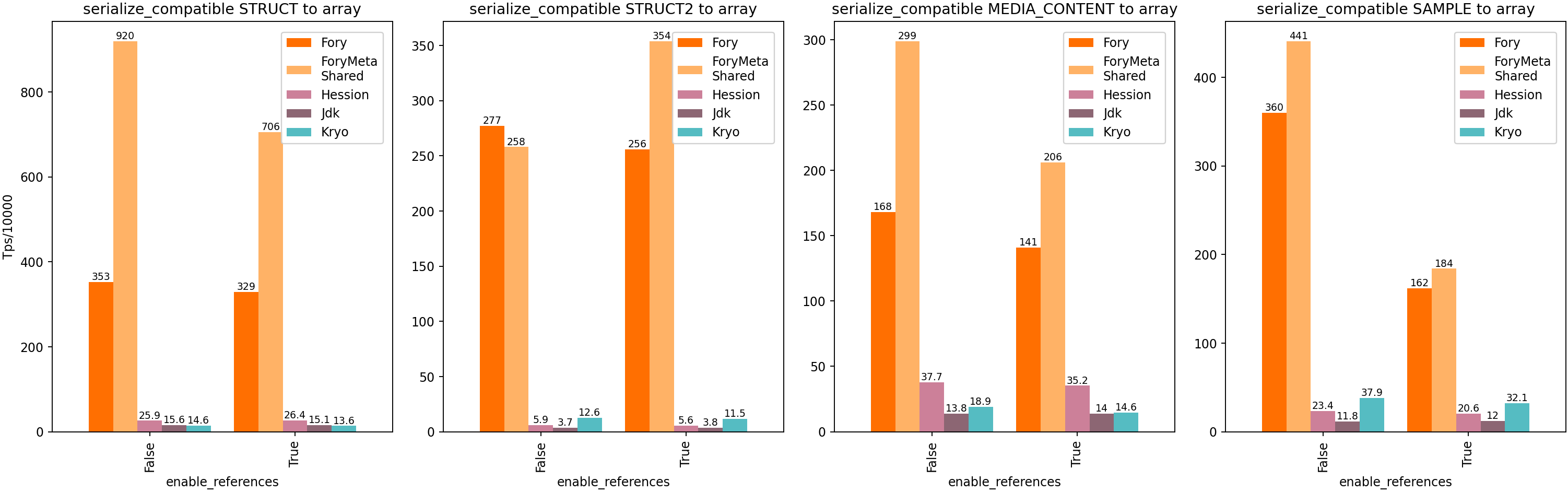

Java schema compatible serialization

The deserialization peer can have different class definition with the serialization peer. Class forward/backward compatibility are supported in this mode.

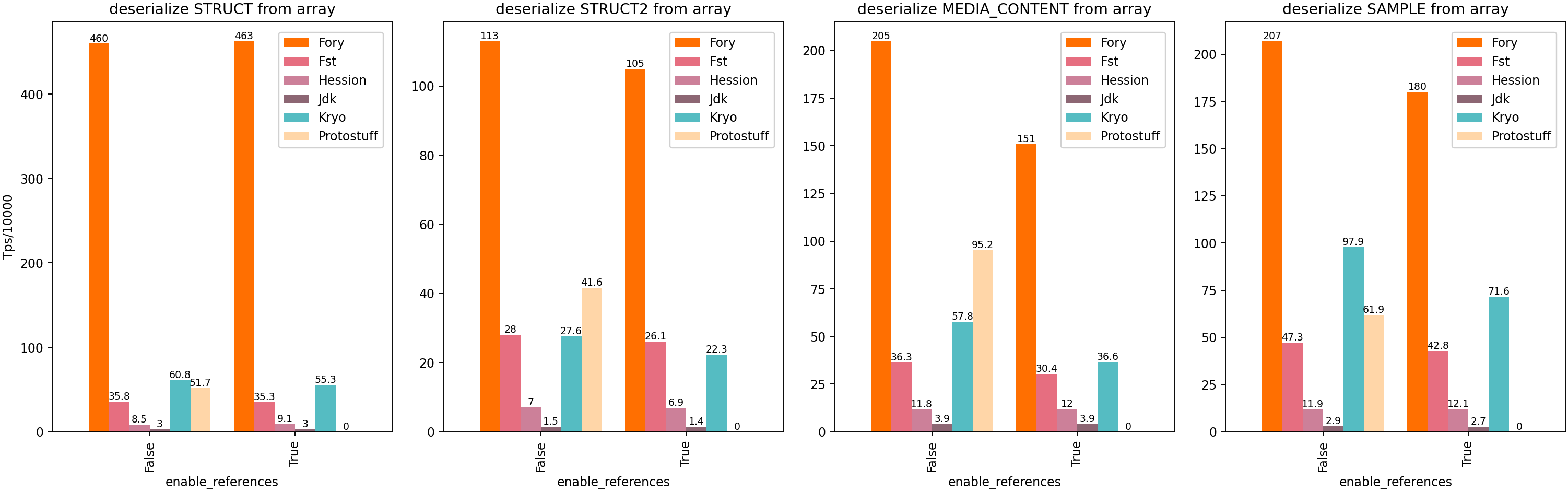

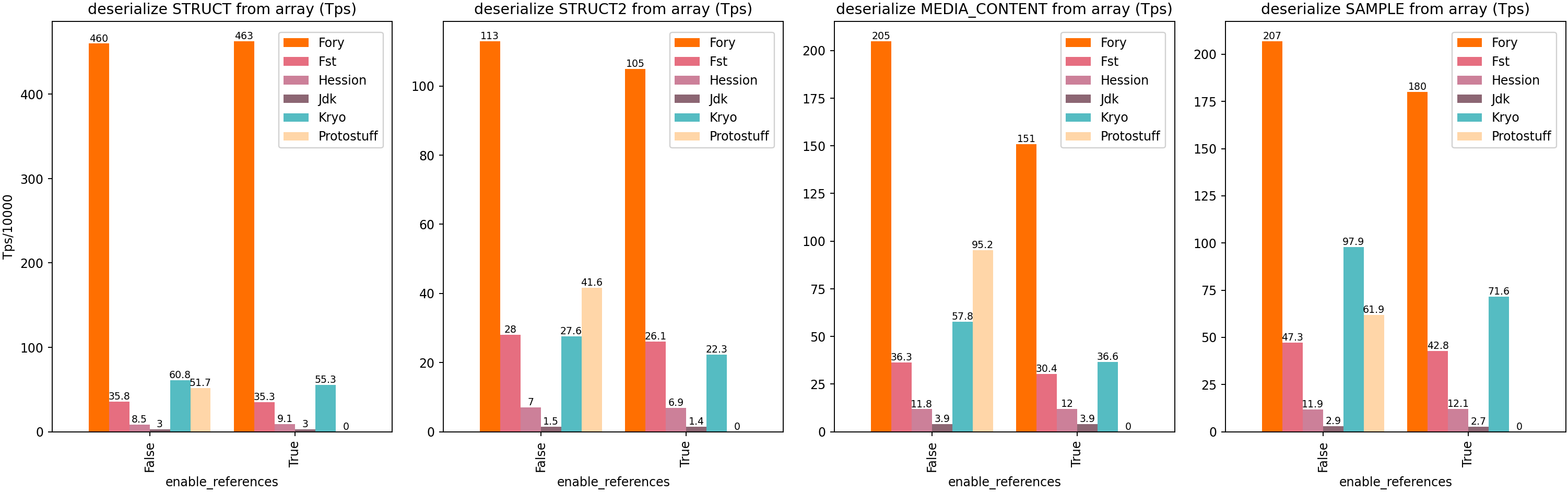

Java schema consistent deserialization

The deserialization peer must have same class definition with the serialization peer. No class forward/backward compatibility are supported in this mode.

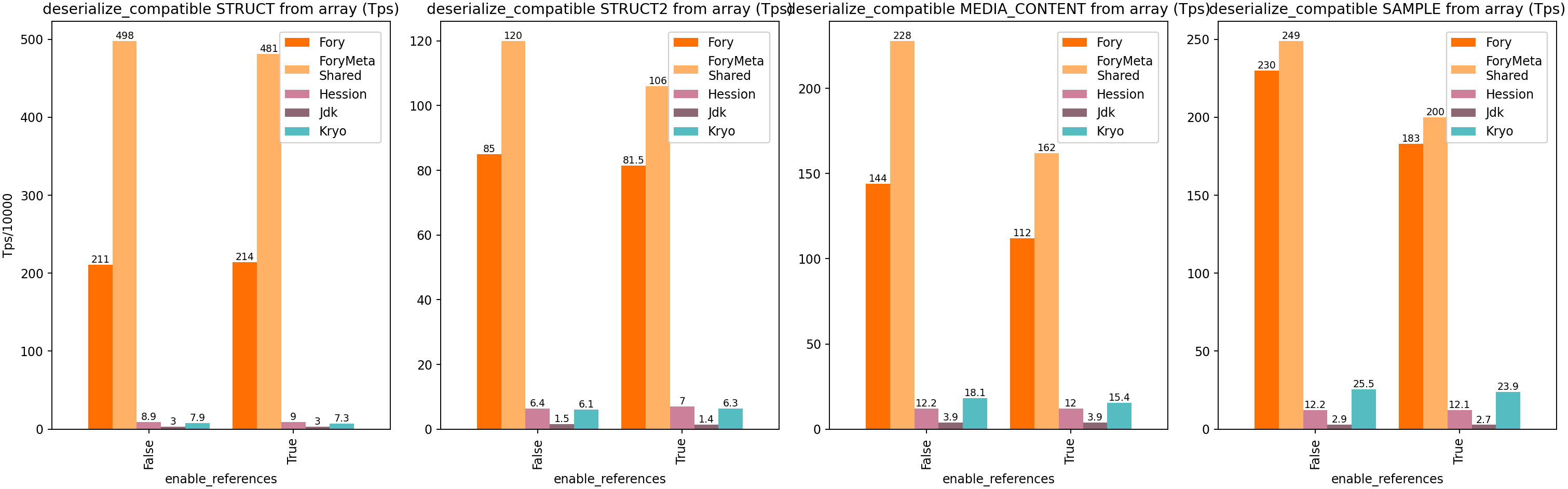

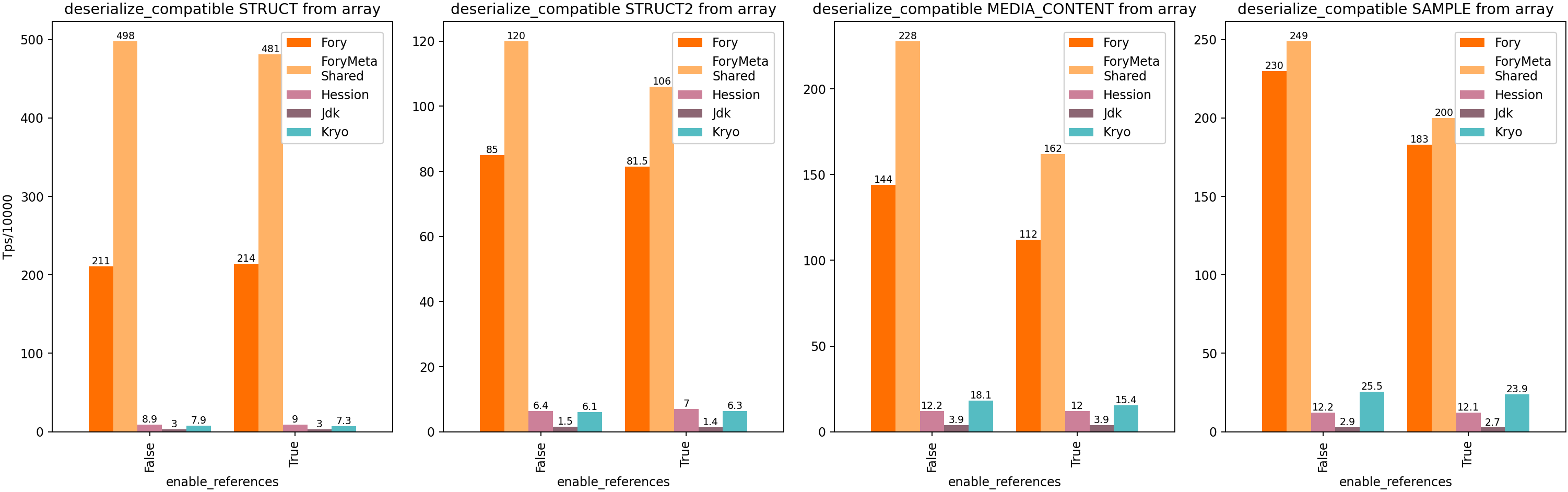

Java schema compatible deserialization

The deserialization peer can have different class definition with the serialization peer. Class forward/backward compatibility are supported in this mode.

Off-heap serialization

Serialize data off-heap memory.

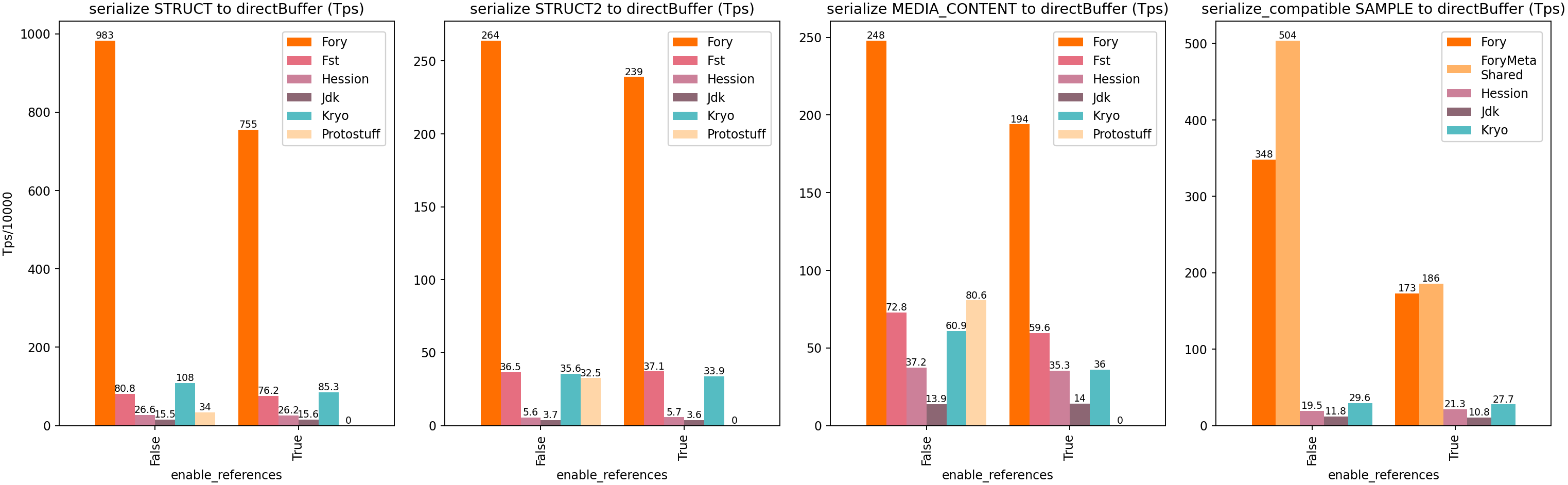

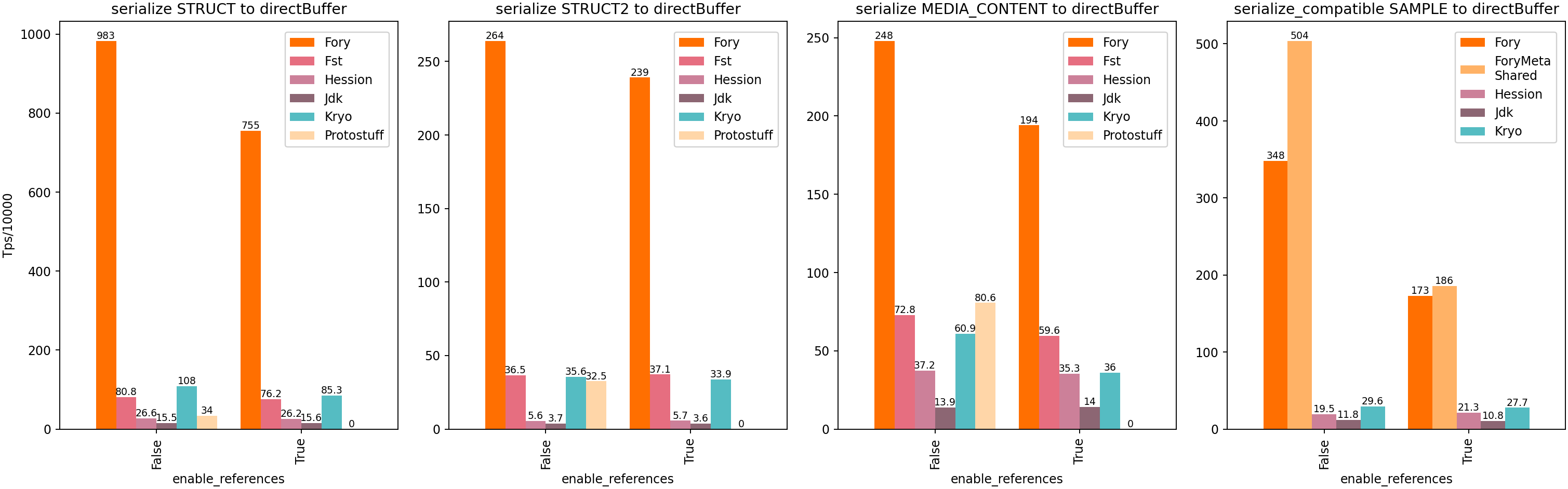

Java schema consistent serialization

The deserialization peer must have same class definition with the serialization peer. No class forward/backward compatibility are supported in this mode.

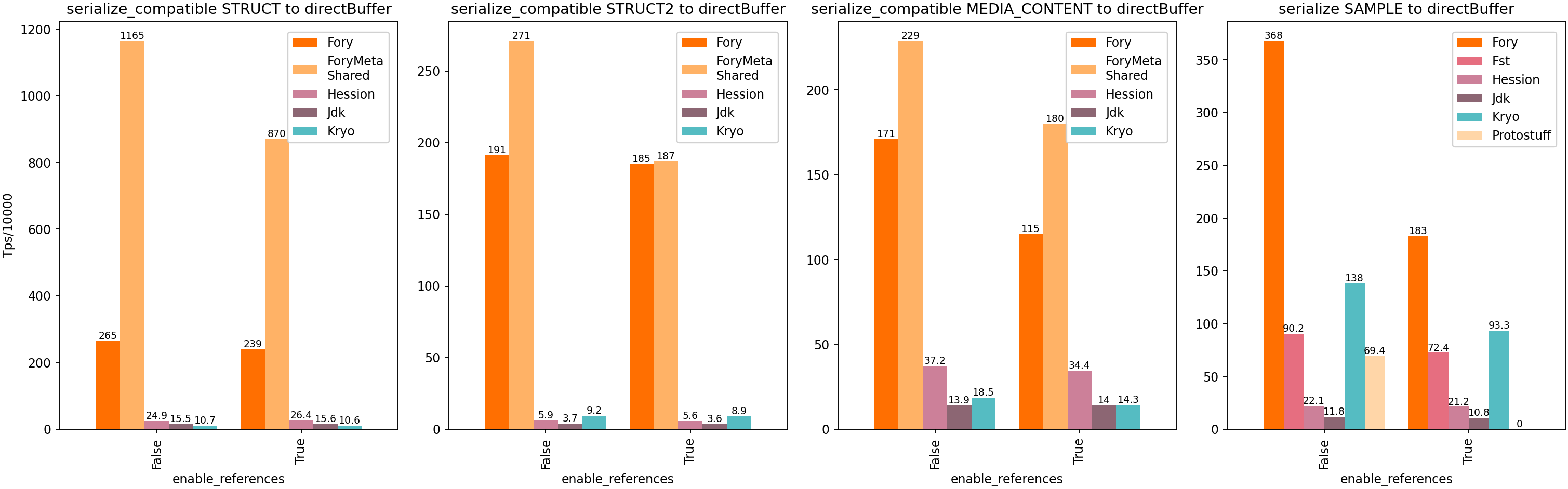

Java schema compatible serialization

The deserialization peer can have different class definition with the serialization peer. Class forward/backward compatibility are supported in this mode.

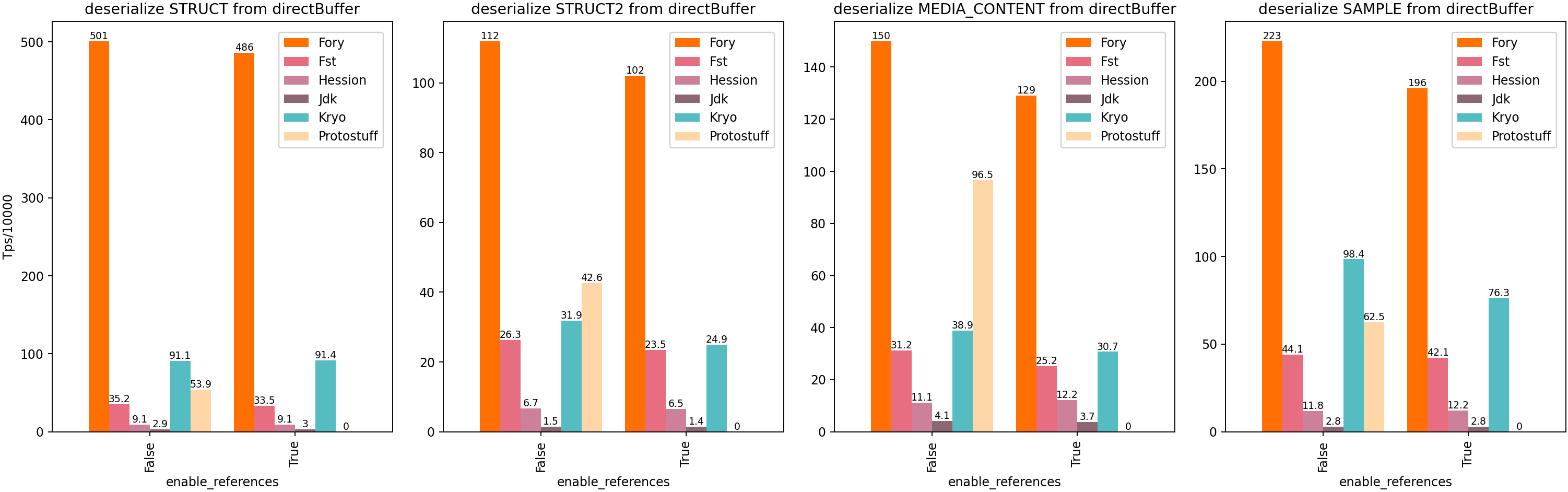

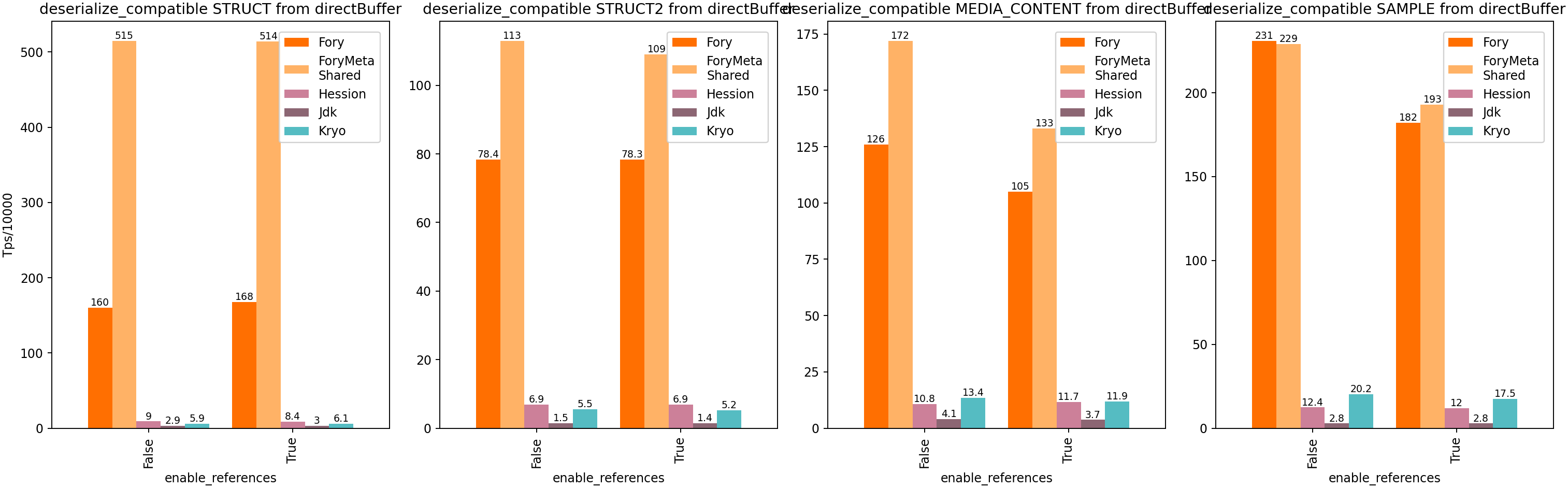

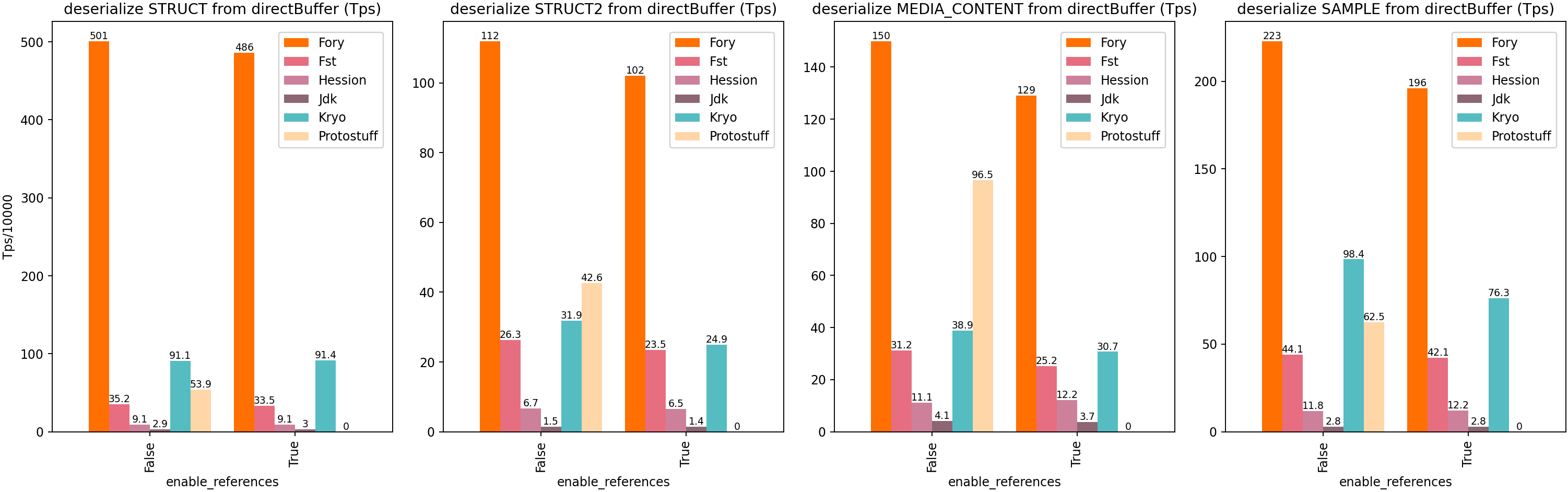

Java schema consistent deserialization

The deserialization peer must have same class definition with the serialization peer. No class forward/backward compatibility are supported in this mode.

Java schema compatible deserialization

The deserialization peer can have different class definition with the serialization peer. Class forward/backward compatibility are supported in this mode.

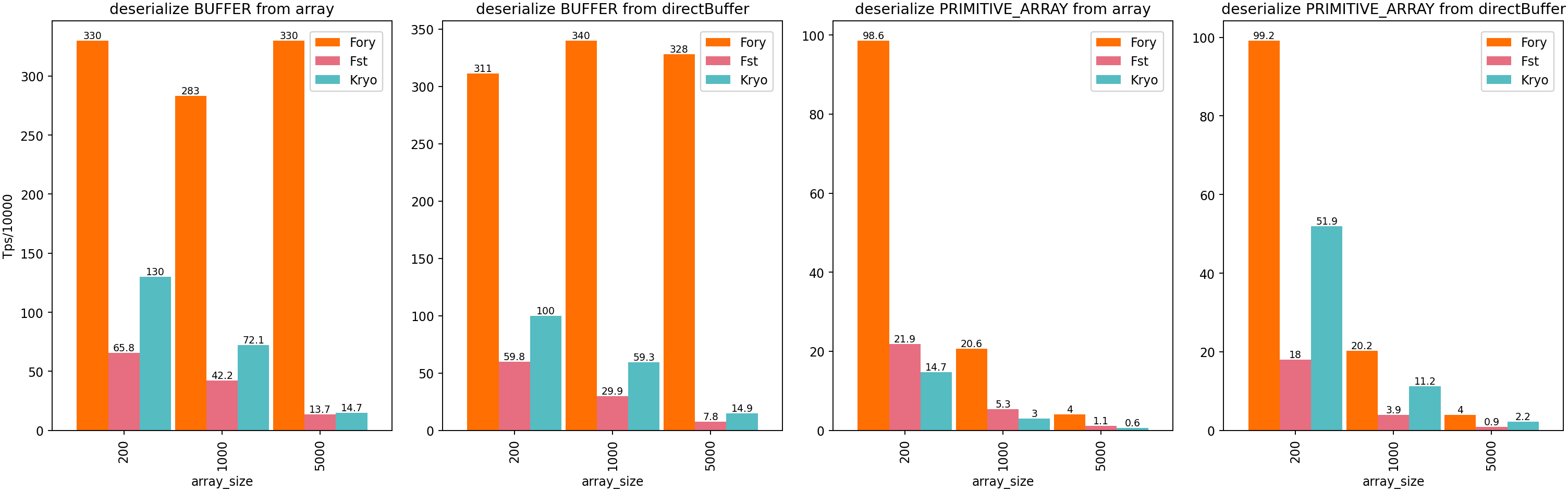

Zero-copy serialization

Note that zero-copy serialization just avoid the copy in serialization, if you send data to other machine, there may be copies.

But if you serialize data between processes on same node and use shared-memory, if the data are in off-heap before serialization, then other processes can read this buffer without any copies.

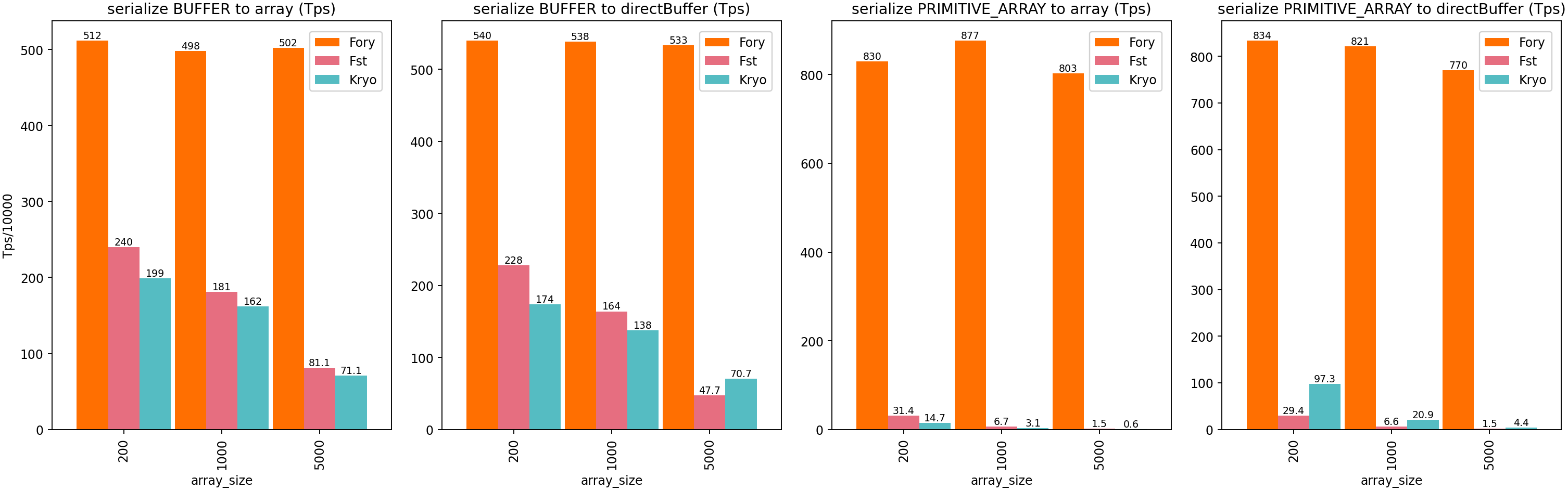

Java zero-copy serialize to heap buffer

Java zero-copy serialize to direct buffer

Benchmark Data

Java Serialization

Benchmark	objectType	bufferType	references	Fory	ForyMetaShared	Kryo	Fst	Hession	Jdk	Protostuff
serialize	STRUCT	array	False	7501415.567260		558194.100861	882178.995727	258233.998931	155908.244240	330975.350403
serialize	STRUCT	array	True	6264439.154428		557542.628765	757753.756691	260845.209485	151258.539369
serialize	STRUCT	directBuffer	False	9834223.243204		1078046.011115	807847.663261	266481.009225	154875.908438	340262.650047
serialize	STRUCT	directBuffer	True	7551780.823133		853350.408656	762088.935404	261762.594966	156404.686214
serialize	STRUCT2	array	False	3586126.623874		325172.969175	371762.982661	56056.080075	36846.049162	322563.440433
serialize	STRUCT2	array	True	3306474.506382		259863.332448	380638.700267	60038.879790	38183.705811
serialize	STRUCT2	directBuffer	False	2643155.135327		355688.882786	365317.705376	55924.319442	37444.967981	325093.716261
serialize	STRUCT2	directBuffer	True	2391110.083108		338960.426033	370851.880711	56674.065604	35798.679246
serialize	MEDIA_CONTENT	array	False	3031642.924542		730792.521676	751892.023189	367782.358049	137989.198821	780618.761219
serialize	MEDIA_CONTENT	array	True	2250384.600246		445251.084327	583859.907758	329427.470680	140260.668888
serialize	MEDIA_CONTENT	directBuffer	False	2479862.129632		608972.517580	728001.080250	372477.138150	138567.623369	805941.345157
serialize	MEDIA_CONTENT	directBuffer	True	1938527.588331		359875.473951	595679.580108	353376.085025	140158.673910
serialize	SAMPLE	array	False	3570966.469087		1105365.931217	915907.574306	220386.502846	118374.836631	663272.710783
serialize	SAMPLE	array	True	1767693.835090		734215.482291	731869.156376	192414.014211	119858.140625
serialize	SAMPLE	directBuffer	False	3684487.760591		1376560.302168	902302.261168	220981.308085	118273.584257	693641.589806
serialize	SAMPLE	directBuffer	True	1826456.709478		932887.968348	723614.066770	211949.960255	108263.040839
serialize_compatible	STRUCT	array	False	3530406.108869	9204444.777172	145964.199559		258650.663523
serialize_compatible	STRUCT	array	True	3293059.098127	7064625.291374	136180.832879		263564.913879
serialize_compatible	STRUCT	directBuffer	False	2653169.568374	11650229.648715	106695.800225		249221.452137
serialize_compatible	STRUCT	directBuffer	True	2393817.762938	8702412.752357	106458.212005		263623.143601
serialize_compatible	STRUCT2	array	False	2773368.997680	2575824.143864	125807.748004		58509.125342
serialize_compatible	STRUCT2	array	True	2564174.550276	3543082.528217	114983.546343		55552.977735
serialize_compatible	STRUCT2	directBuffer	False	1912402.937879	2714748.572248	92130.672361		58908.567439
serialize_compatible	STRUCT2	directBuffer	True	1848338.968058	1866073.031851	88989.724768		55524.373547
serialize_compatible	MEDIA_CONTENT	array	False	1679272.036223	2992288.235281	188911.259146		377195.903772
serialize_compatible	MEDIA_CONTENT	array	True	1406736.538716	2058738.716953	145782.916427		351657.879556
serialize_compatible	MEDIA_CONTENT	directBuffer	False	1710680.937387	2291443.556971	185363.714829		371729.727192
serialize_compatible	MEDIA_CONTENT	directBuffer	True	1149999.473994	1804349.244125	142836.961878		343834.954942
serialize_compatible	SAMPLE	array	False	3604596.465625	4409055.687063	378907.663184		234454.975158
serialize_compatible	SAMPLE	array	True	1619648.337293	1840705.439334	320815.567701		206174.173039
serialize_compatible	SAMPLE	directBuffer	False	3484533.218305	5043538.364886	296102.615094		194761.224263
serialize_compatible	SAMPLE	directBuffer	True	1730822.630648	1859289.705838	276757.392449		212840.483308
deserialize	STRUCT	array	False	4595230.434552		607750.343557	357887.235311	84709.108821	29603.066599	517381.168594
deserialize	STRUCT	array	True	4634753.596131		552802.227807	353480.554035	91050.370224	29727.744196
deserialize	STRUCT	directBuffer	False	5012002.859236		910534.169114	352441.597147	91151.633583	28717.004518	538922.947147
deserialize	STRUCT	directBuffer	True	4864329.316938		914404.107564	334574.303484	91037.205901	29549.998286
deserialize	STRUCT2	array	False	1126298.359550		275984.042401	280131.091068	69758.767783	14888.805111	416212.973861
deserialize	STRUCT2	array	True	1046649.083082		222710.554833	260649.308016	68616.029248	14034.100664
deserialize	STRUCT2	directBuffer	False	1117586.457565		319247.256793	262519.858810	66866.108653	14652.043788	425523.315814
deserialize	STRUCT2	directBuffer	True	1018277.848128		249105.828416	234973.637096	65338.345185	14425.886048
deserialize	MEDIA_CONTENT	array	False	2054066.903469		577631.234369	363455.785182	118156.072284	38536.250402	951662.019963
deserialize	MEDIA_CONTENT	array	True	1507767.206603		365530.417232	304371.728638	120016.594171	38957.191090
deserialize	MEDIA_CONTENT	directBuffer	False	1502746.028159		389473.174523	311691.658687	111067.942626	40512.632076	964664.641598
deserialize	MEDIA_CONTENT	directBuffer	True	1290593.975753		306995.220799	251820.171513	121820.821260	37030.594632
deserialize	SAMPLE	array	False	2069988.624415		979173.981159	473409.796491	119471.518388	29309.573998	619338.385412
deserialize	SAMPLE	array	True	1797942.442313		716438.884369	428315.502365	121106.002978	27466.003923
deserialize	SAMPLE	directBuffer	False	2229791.078395		983538.936801	441027.550809	117806.916589	28128.457935	624804.978534
deserialize	SAMPLE	directBuffer	True	1958815.397807		762889.302732	420523.770904	121940.783597	28221.014735
deserialize_compatible	STRUCT	array	False	2110335.039275	4978833.206806	78771.635309		88617.486795
deserialize_compatible	STRUCT	array	True	2135681.982674	4807963.882520	72805.937649		90206.654212
deserialize_compatible	STRUCT	directBuffer	False	1596464.248141	5149070.657830	58574.904225		89580.561575
deserialize_compatible	STRUCT	directBuffer	True	1684681.074242	5137500.621288	60685.320299		84407.472531
deserialize_compatible	STRUCT2	array	False	849507.176263	1201998.142474	60602.285743		63703.763814
deserialize_compatible	STRUCT2	array	True	815120.319155	1058423.614156	62729.908347		69521.573119
deserialize_compatible	STRUCT2	directBuffer	False	784036.589363	1131212.586953	54637.329134		69342.030965
deserialize_compatible	STRUCT2	directBuffer	True	782679.662083	1089162.408165	51761.569591		68542.055543
deserialize_compatible	MEDIA_CONTENT	array	False	1441671.706320	2279742.810882	180882.860363		121619.090797
deserialize_compatible	MEDIA_CONTENT	array	True	1121136.039627	1623938.202345	154311.211540		119994.104050
deserialize_compatible	MEDIA_CONTENT	directBuffer	False	1256034.732514	1718098.363961	134485.160300		107594.474890
deserialize_compatible	MEDIA_CONTENT	directBuffer	True	1054942.751816	1333345.536684	119311.787329		116531.023438
deserialize_compatible	SAMPLE	array	False	2296046.895861	2485564.396196	255086.928308		121898.105768
deserialize_compatible	SAMPLE	array	True	1834139.395757	2002938.794909	238811.995510		121297.485903
deserialize_compatible	SAMPLE	directBuffer	False	2308111.633661	2289261.533644	201993.787890		124044.417439
deserialize_compatible	SAMPLE	directBuffer	True	1820490.585648	1927548.827586	174534.710870		120276.449497

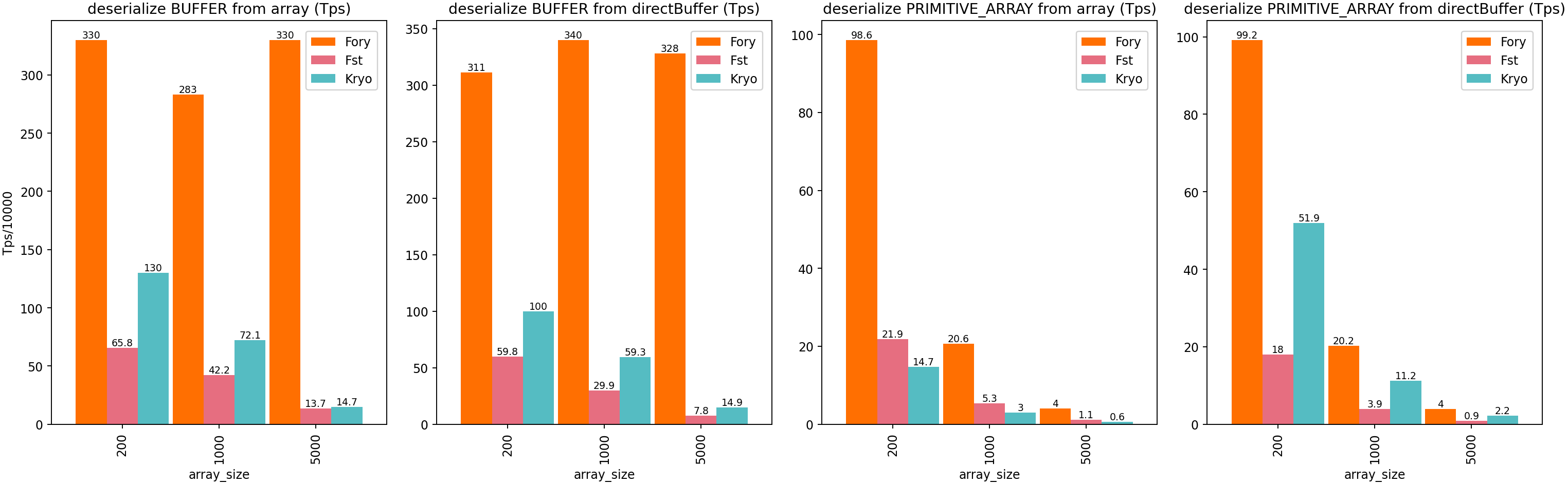

Java Zero-copy

Benchmark	array_size	bufferType	dataType	Fory	Kryo	Fst
serialize	200	array	BUFFER	5123572.914045	1985187.977633	2400193.220466
serialize	200	array	PRIMITIVE_ARRAY	8297232.942927	147342.606262	313986.053417
serialize	200	directBuffer	BUFFER	5400346.890126	1739454.519770	2282550.111756
serialize	200	directBuffer	PRIMITIVE_ARRAY	8335248.350301	972683.763633	294132.218623
serialize	1000	array	BUFFER	4979590.929127	1616159.671230	1805557.477810
serialize	1000	array	PRIMITIVE_ARRAY	8772856.921028	31395.721514	67209.107012
serialize	1000	directBuffer	BUFFER	5376191.775007	1377272.568510	1644789.427010
serialize	1000	directBuffer	PRIMITIVE_ARRAY	8207563.785251	209183.090868	66108.014322
serialize	5000	array	BUFFER	5018916.322770	711287.533377	811029.402136
serialize	5000	array	PRIMITIVE_ARRAY	8027439.580226	6248.006967	14997.400124
serialize	5000	directBuffer	BUFFER	5330897.682960	707092.956534	477148.540850
serialize	5000	directBuffer	PRIMITIVE_ARRAY	7695981.988316	43565.678616	15000.378818
deserialize	200	array	BUFFER	3302149.383135	1296284.787720	657754.887247
deserialize	200	array	PRIMITIVE_ARRAY	986136.067809	146675.360652	219333.990504
deserialize	200	directBuffer	BUFFER	3113115.471758	1004844.498712	598421.278941
deserialize	200	directBuffer	PRIMITIVE_ARRAY	991807.969328	518713.299422	179604.045774
deserialize	1000	array	BUFFER	2831942.848999	721266.541130	422147.154601
deserialize	1000	array	PRIMITIVE_ARRAY	205671.992736	30409.835023	53100.903684
deserialize	1000	directBuffer	BUFFER	3397690.327371	592972.713203	298929.116572
deserialize	1000	directBuffer	PRIMITIVE_ARRAY	202275.242341	112132.004609	38572.001768
deserialize	5000	array	BUFFER	3296658.120035	147251.846111	136934.604328
deserialize	5000	array	PRIMITIVE_ARRAY	40312.590172	6122.351228	10672.872798
deserialize	5000	directBuffer	BUFFER	3284441.570594	148614.476829	77950.612503
deserialize	5000	directBuffer	PRIMITIVE_ARRAY	40413.743717	21826.040410	8561.694533
